Bow Tie Studies: Comprehensive Risk Management

Introduction to Bow Tie Analysis

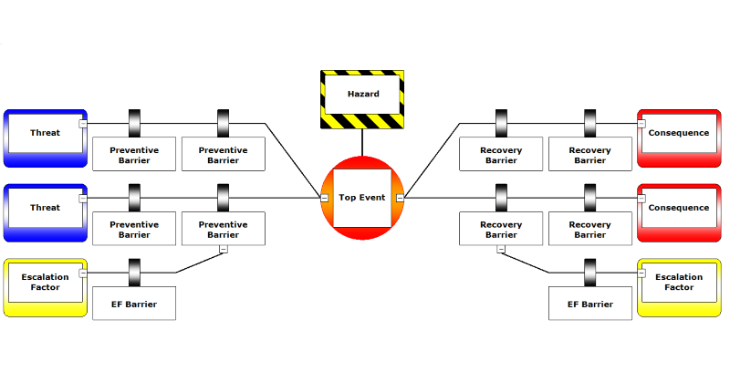

Bow Tie Analysis is a powerful, visual risk assessment methodology used to manage major accident hazards in high-risk industries. Named for its distinctive bow tie-shaped diagram, it illustrates the relationship between potential causes (threats), a central hazardous event (top event), and resulting outcomes (consequences). By mapping preventive and mitigative barriers, it provides a clear framework for understanding and controlling risks. Widely adopted in process safety, it enhances communication and decision-making across multidisciplinary teams.

Role in Process Hazard Analysis (PHA)

Bow Tie Analysis is a critical tool within the broader Process Hazard Analysis (PHA) framework, complementing methods like HAZID, HAZOP, and Quantitative Risk Assessment (QRA). It is typically employed after initial hazard identification (e.g., post-HAZID or HAZOP) to focus on major accident scenarios. Positioned in the design phase or for operational facilities, it:

• Translates qualitative PHA findings into a visual format for easier analysis.
• Bridges the gap between hazard identification and detailed risk quantification (e.g., Fault Tree or Event Tree Analysis).
• Supports ongoing safety management by verifying barrier performance and identifying gaps.
• Integrates with Safety Integrity Level (SIL) assessments and Layer of Protection Analysis (LOPA) to ensure robust safety systems.

This structured approach makes it ideal for process plants, where complex systems demand clear risk visualization.

Key Definitions

• Hazard: A condition or substance with the potential to cause harm, such as flammable gases, high-pressure systems, or toxic chemicals in a process plant.
• Threats: Initiating events or conditions (e.g., equipment failure, human error, corrosion) that could release the hazard.
• Top Event: The critical point where control over the hazard is lost, leading to a hazardous event (e.g., loss of containment, fire, or explosion).
• Barriers: Safeguards designed to prevent or mitigate risks, categorized as:

Preventive Barriers: Controls that reduce the likelihood of the top event (e.g., pressure relief valves, operator training, automated shutdown systems).
Mitigative Barriers: Measures that minimize the severity or impact post-top event (e.g., fire suppression systems, emergency evacuation plans).
Consequences: Potential outcomes of the top event, such as injuries, environmental damage, production losses, or reputational harm.
Escalation: Factors or conditions (e.g., barrier failure, extreme weather) that could worsen the scenario or impair barriers, requiring additional controls.

Detailed Process

1. Hazard and Top Event Identification:
   o Select a critical hazard (e.g., hydrocarbon release in a refinery).
   o Define the top event, the moment control is lost (e.g., pipeline rupture).

2. Threat Identification:
   o Brainstorm potential causes using PHA data, historical incidents, or engineering expertise (e.g., valve failure, overpressure).

3. Consequence Mapping:
   o Identify outcomes of the top event, ranging from minor disruptions to catastrophic events (e.g., fire, environmental spill).

4. Barrier Analysis:
   o Map preventive barriers between threats and the top event (e.g., regular maintenance, safety instrumented systems).
   o Map mitigative barriers between the top event and consequences (e.g., gas detection systems, spill containment).

5. Escalation Factors:
   o Identify conditions that could degrade barriers (e.g., inadequate maintenance, human fatigue) and add secondary controls.

6. Visualization and Validation:
    Use software tools (e.g., BowTieXP, THESIS) to create clear diagrams.
   o Validate barriers through testing, audits, or performance metrics.

7. Integration and Reporting:
   o Document findings in a comprehensive report.
   o Integrate into safety management systems, training programs, and emergency response plans.

Benefits of Bow Tie Analysis

• Clear Visualization of Major Accident Hazards: The bow tie diagram simplifies complex risk scenarios, making them accessible to engineers, operators, and management. It visually connects threats, events, and consequences, fostering shared understanding.
• Enhanced Barrier Management: By identifying and categorizing barriers, it ensures controls are effective, independent, and auditable. It highlights gaps or weak barriers, enabling targeted improvements.
• Improved Risk Communication: The intuitive format supports training, safety briefings, and stakeholder engagement, ensuring alignment on critical risks.
• Regulatory Compliance: Aligns with standards like ISO 45001, OSHA PSM, and Seveso III, demonstrating proactive risk management.
• Incident Investigation Support: Provides a framework to analyze root causes and barrier failures post-incident, driving lessons learned.
• Cost-Effective Safety: By prioritizing high-impact barriers, it optimizes resource allocation for risk reduction.

Applications in Process Plants

Bow Tie Analysis is widely used in industries with high-risk operations, including:

• Oil and Gas: Managing risks in upstream (drilling), midstream (pipelines), and downstream (refineries) operations.
• Chemical Manufacturing: Controlling hazards from toxic releases or exothermic reactions.
• Pharmaceuticals: Ensuring safety in high-purity or hazardous material handling.
• Power Generation: Addressing risks in boiler systems or nuclear facilities.
• Maritime and Offshore: Mitigating risks in LNG carriers or offshore platforms.

Industry Examples

Leading safety consultancies emphasize Bow Tie Analysis for its clarity and practicality:

• DNV highlights its role in visualizing complex risks and ensuring barrier integrity (dnv.com).
• ABS Group promotes its use in integrating PHA outputs with operational safety (absgroup.com).
• CGE Risk Management showcases BowTieXP software for real-time barrier monitoring (cgerisk.com).

Why Choose Our Bow Tie Studies?

Our expert team delivers tailored Bow Tie studies, leveraging industry best practices and advanced software to:

•  Identify and prioritize major accident hazards.
•  Design robust barrier systems for your process plant.
•  Provide actionable insights for safety and compliance.

Contact us to enhance your process safety with customized Bow Tie Analysis
